CONSMA001-SMD-G
Manufacturer:
Linx Technologies
Mfr.Part #:
CONSMA001-SMD-G
Datasheet:
Description:

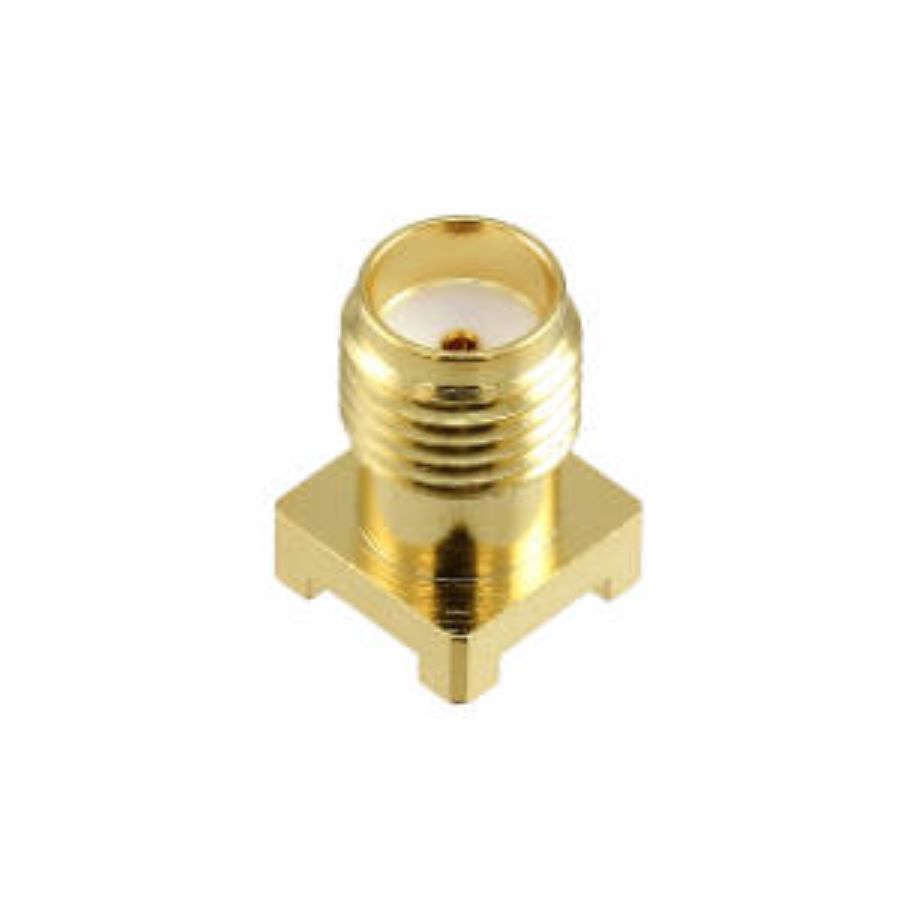

RF / Coaxial Connectors SMD/SMT SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 10.5156 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Manufacturer Package Identifier | CONSMA001-SMD-G |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper, Gold |
| Frequency | 12.4 GHz |
| Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 18 GHz |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Plating | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
